John Guest Ring Main

John Guest’s compressed air piping system provides utilises push-fit technology for fast assembly and exceptional performance. Including compressor receivers, complete ring main, take off points and airline components, John Guest can provide uninterrupted air flow and high-pressure resistance
John Guest Ring Main
John Guest Ring Main

Key Benefits of John Guest Ring Main

The John Guest push-fit air ring main system optimises pressure and flow rates, as well as providing time and resource-saving benefits.

  • 50% time saving on set up, and you don’t need to use tools, threading or solvents
  • Minimise down time when reconfiguring systems. With demountable and interchangeable fittings, it is simple and fast to change layouts
  • Optimised, quality air flow with seals that are airtight - eradicating leaks, preventing pressure drops and reducing energy consumption
  • Equipment and system life cycle is extended by the use of corrosion resistant materials
  • Improved performance and longevity thanks to a unique water trap which eradicates moisture in the airline
  • Highly versatile and compatible with a wide range of piping including nylon, power coated aluminium, LLDPE or other plastic and soft metal pipes.



John Guest Ring Main Fittings & Pipe

Fittings
Fittings
Pipe
Pipe

Fittings

Available in sizes from 12 to 28mm, John Guest’s plastic and brass push fit fittings are suitable for compressed air and pneumatics systems up to 10 bar can also be used for applications including vacuum, inert gasses and potable liquids.

These tool free fittings are fast to install and provide an air tight seal for pneumatic and compressed air systems. The system utilises a unique locking design to securely and firmly hold the pipe in site, ensuring that pipes are held in place without restricting the air flow or deformation.  What’s more, the unique water trap improves longevity and system performance by keeping the airline moisture free.



Pipe

Whether you need powder-coated aluminium pipe or rigid nylon pipe for a more cost-effective solution, John Guest pipes ensure a durable solution whatever you need.  With sizes from 12 to 28mm, these pipes are suitable for compressed air and pneumatics systems up to 10 bar can also be used for applications including vacuum, inert gasses and potable liquids.

Workshop bay kit options available:

As part of our commitment to making fluid power easy, we have created three John Guest Bay Kits which can be ordered as one product.

To order any of the items below, simply add the product code below into your shopping basket.

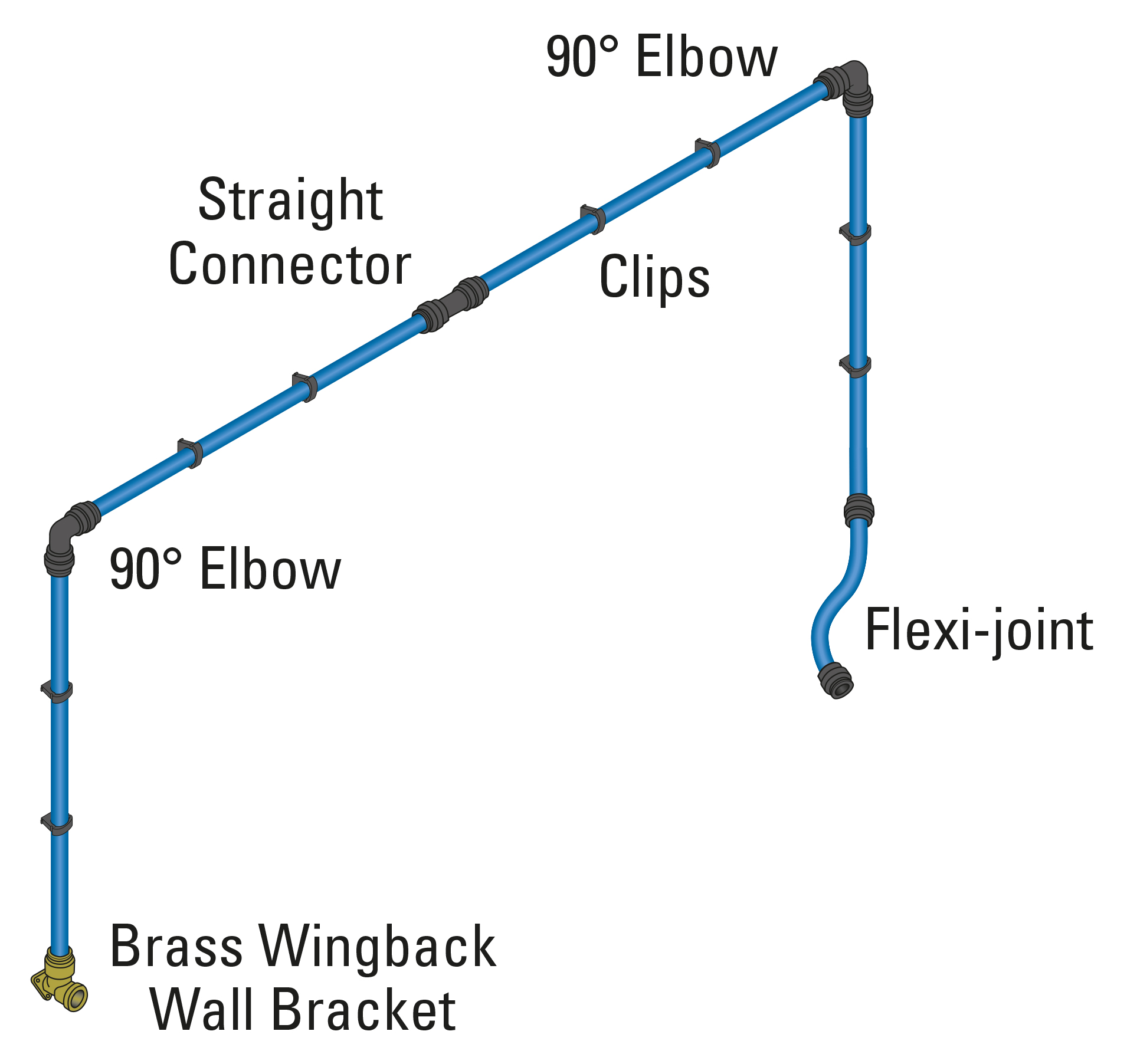

John Guest Ring Main Kit (1) 15mm

Product Code: JGKIT1

John Guest Ring Main Kit 1

1 x Bay Kit of John Guest 15mm O.D pipe and fittings, comprising of:

  • 4 x 3m lengths of 15mm nylon pipe.
  • 8 x Pipe clips.
  • 2 x Elbows.
  • 1 x Flex with 1/2" bsp male stem adaptor.
  • 1 x Straight connector.
  • 1 Brass Wingback wall bracket with 1 x PCL 19 series Coupling.

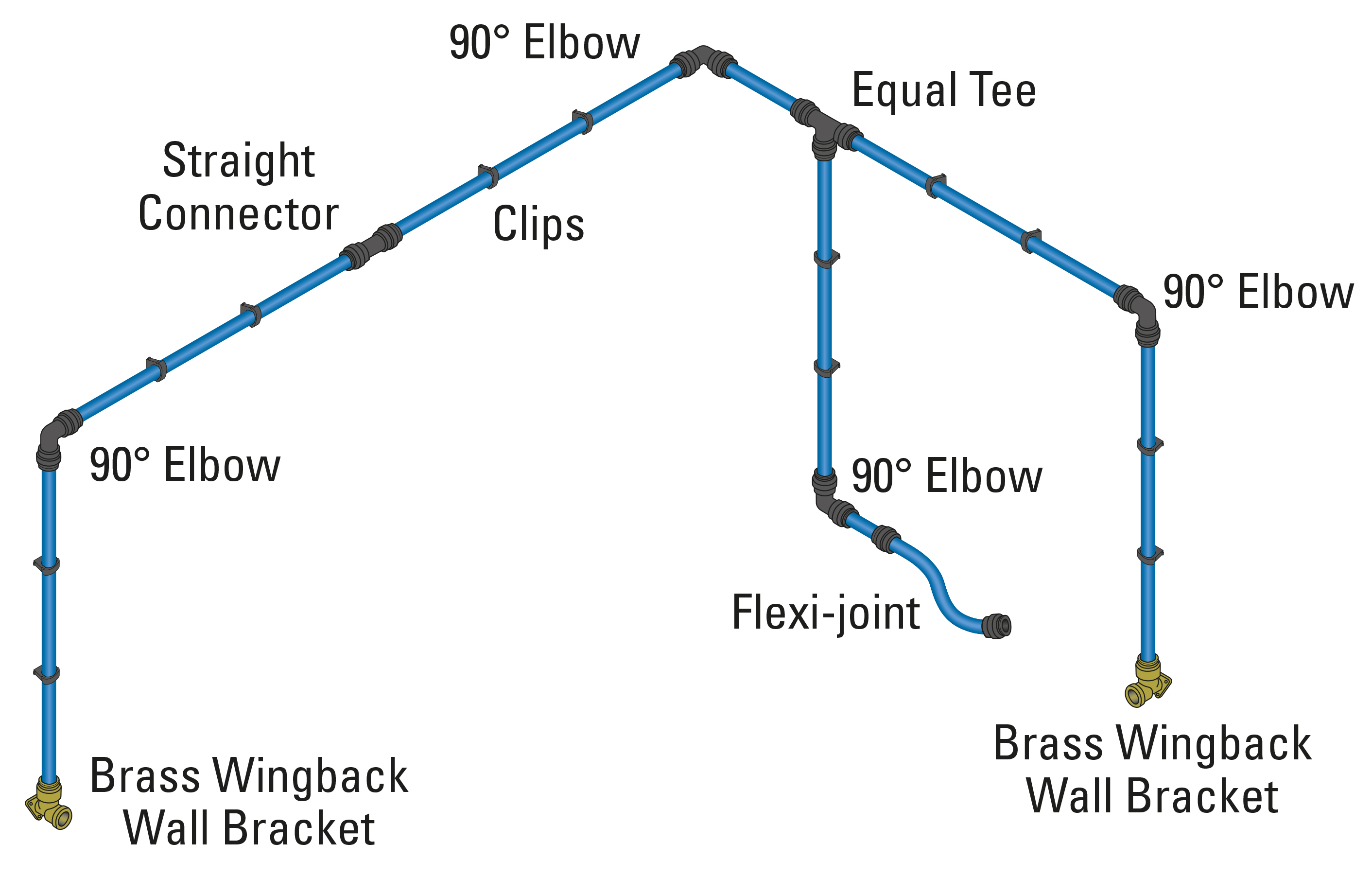

John Guest Ring Main Kit (2) 15mm

Product Code: JGKIT2

John Guest Ring Main Kit 2

2 x  Bay Kit of John Guest 15mm OD pipe and fittings, comprising of:

  • 6 x 3 metre lengths nylon pipe.
  • 12 x Clips.
  • 4 x Elbows.
  • 1 x Flex 15 with 1/2" bsp male stem adaptor.
  • 2 x Brass wingback wall brackets.
  • 1 x Straight connector.
  • 1 x Tee & 2 PCL 19 Series couplings.

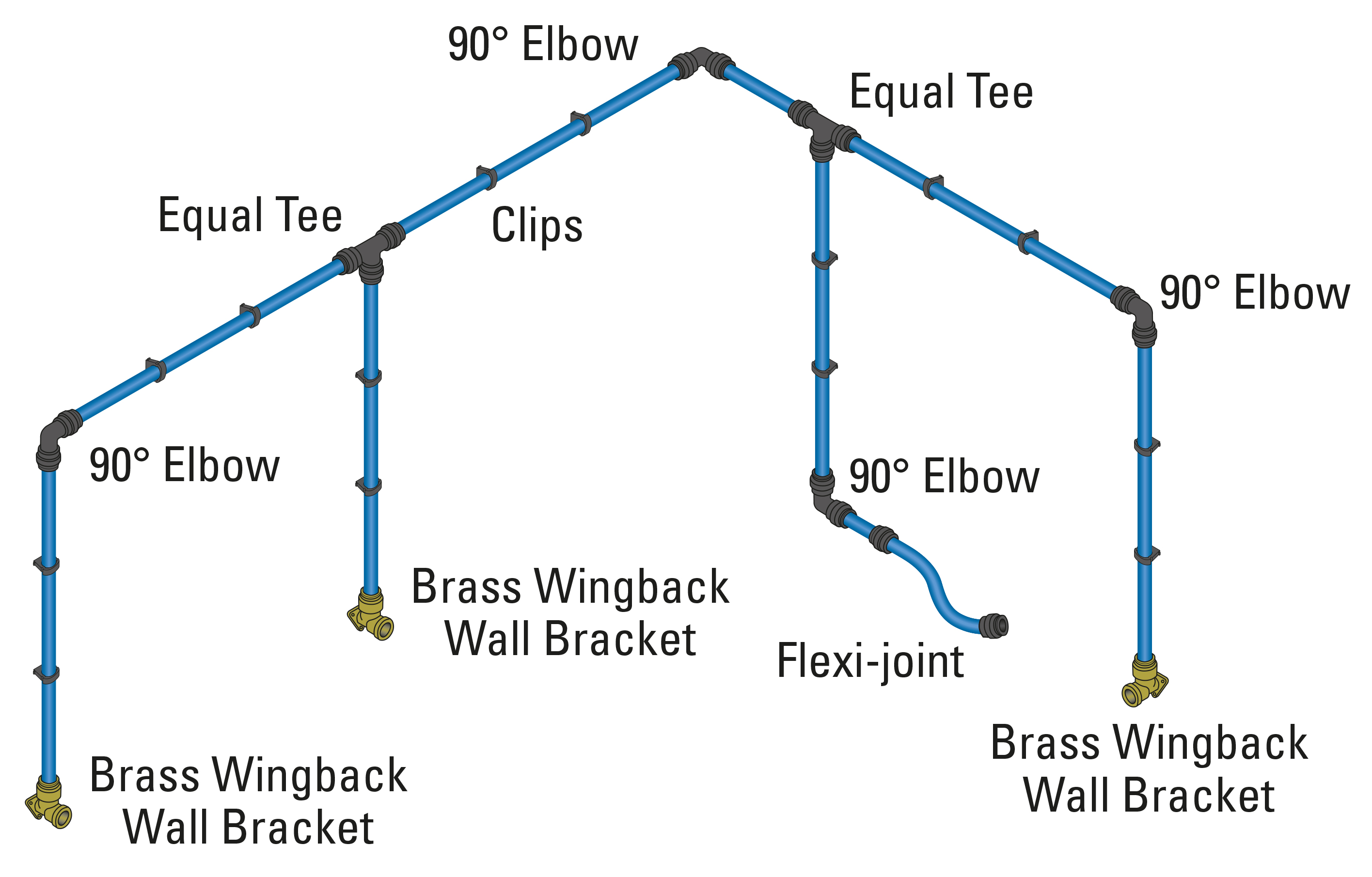

John Guest Ring Main Kit (3) 22mm

Product Code: JGKIT3

John Guest Ring Main Kit 3

3 x Bay kit of John Guest 22mm OD pipe and fittings, comprising of:

  • 7 x 3 metre lengths nylon pipe.
  • 14 x Pipe clips.
  • 4 x Elbows.
  • 1 x Flex 22 with 1/2" bsp male stem adaptor.
  • 3 x Brass wingback wall brackets,
  • 2 x Straight connector.
  • 2 x Tee.
  • 3 x PCL 19 Series couplings & 3 x 3/4 x 1/2 reducing bush.
  • 1 x PTFE Tape

To order any of these kits, simply add the product code into your shopping basket.
